Short Description:

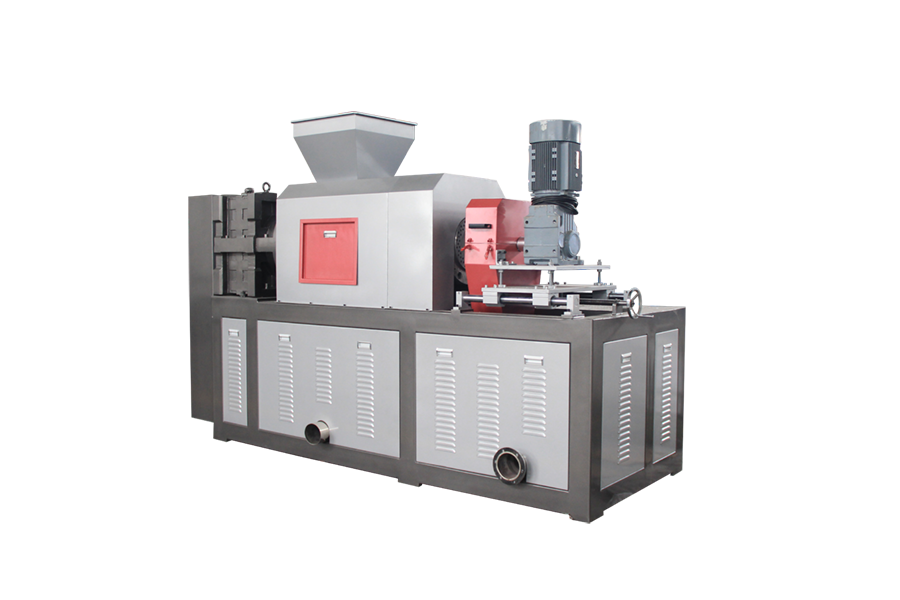

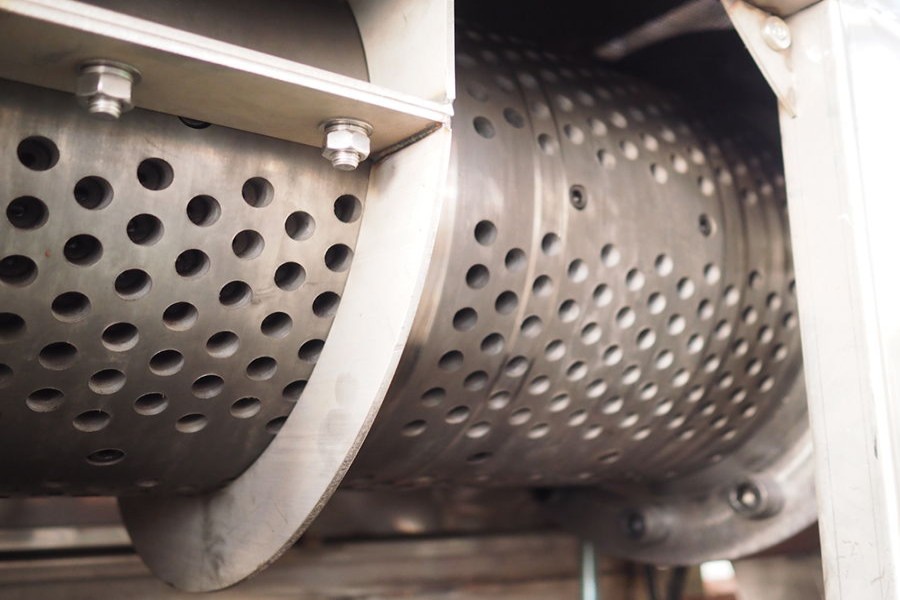

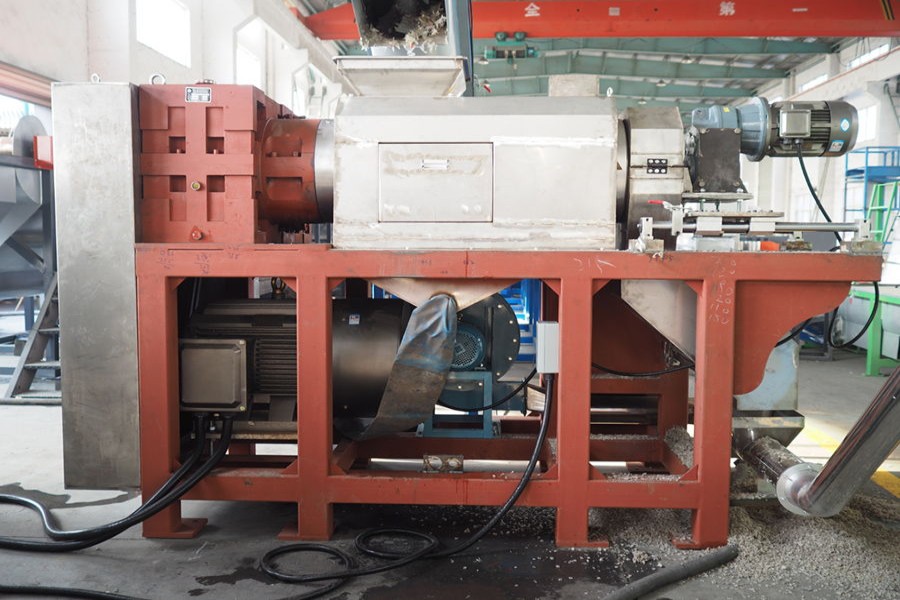

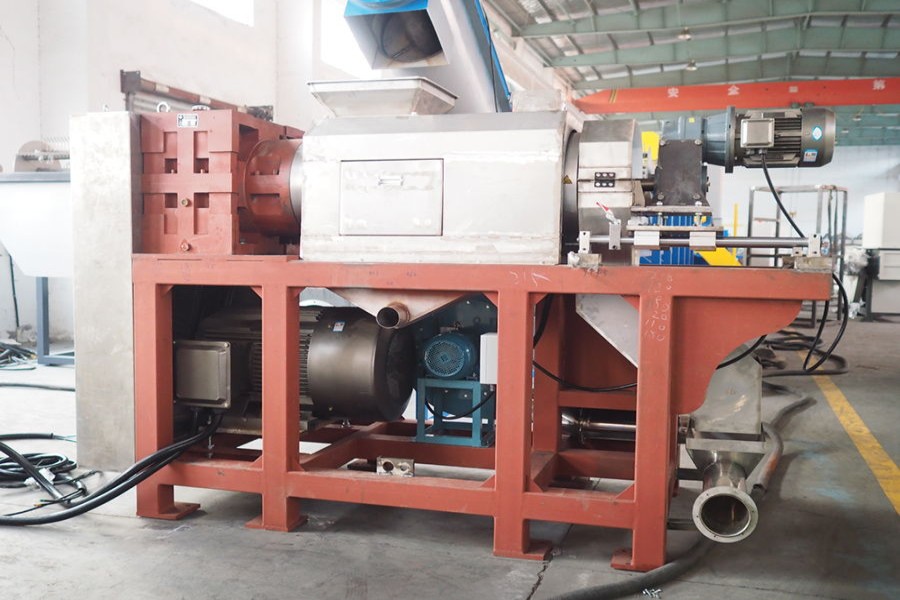

Plastic film squeezing machine, We also called water squeezer, Film squeezer, which is a new designed drying machines instead of traditional dewatering machines and drying system for washed recycled films ,bags,woven bag ect. This machine could remove most water from washed film efficiently.The corn parts is the screw surrounded by the screen mesh which will pushes the material forward under pressing& squeezing power, the waters will be filter out fast. The self-friction power and auxiliary electric heating system will turn the film material at semi-plasticized condition and extruded out from the mould and been cut by speed rotor blades. The cut pieces will be cooling by air and transmit to cyclone silo. The final products will be regular granulas which increase output a lot on pelletizing process.


Product Detail

Product Images

Plastic film squeezing machine, We also called water squeezer, Film squeezer, which is a new designed drying machines instead of traditional dewatering machines and drying system for washed recycled films ,bags,woven bag ect. This machine could remove most water from washed film efficiently.The corn parts is the screw surrounded by the screen mesh which will pushes the material forward under pressing& squeezing power, the waters will be filter out fast. The self-friction power and auxiliary electric heating system will turn the film material at semi-plasticized condition and extruded out from the mould and been cut by speed rotor blades. The cut pieces will be cooling by air and transmit to cyclone silo. The final products will be regular granulas which increase output a lot on pelletizing process.



Features:

1. Latest technology.

2. Application: wet PP PE film, bags.

3. Low power consumption.



Models &specification:

Model

Main motor power

Capacity

Moisture

SD-300

75KW

300kg/h

1~3%

SD-500

90KW

500kg/h

1-~3%

SD-800

132KW

800kg/h

1~3%
