Short Description:

The whole pipe shredder is designed special for long pipes from 0.5meters to 6meters varies ranges diameters.The process can realize work automatically. At the same time of the brokenness, the operator can control remotely, it has no damage to operator.


Product Detail

Product Images

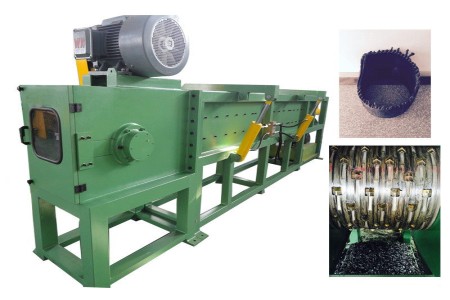

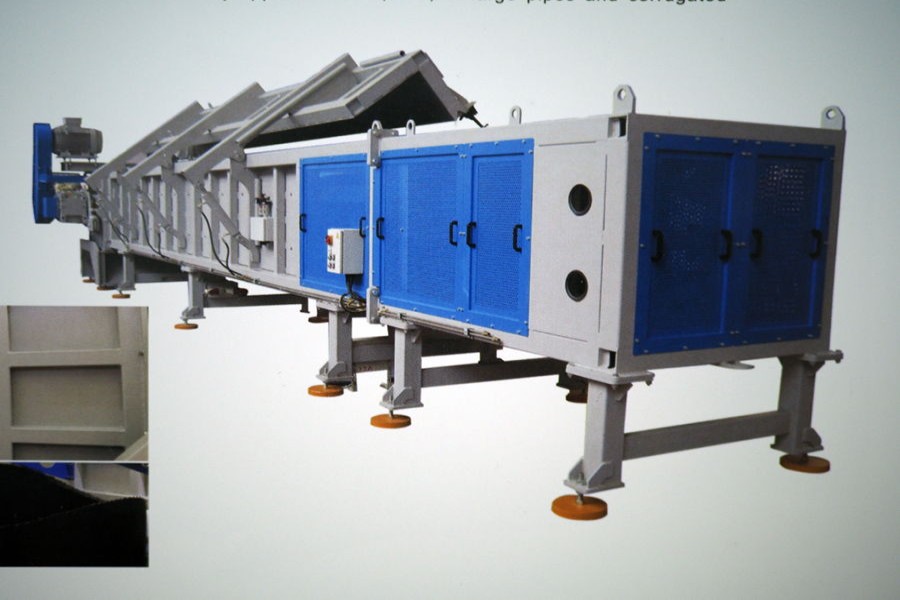

Long pipe shredder:

The whole pipe shredder is designed special for long pipes from 0.5meters to 6meters varies ranges diameters.The process can realize work automatically. At the same time of the brokenness, the operator can control remotely, it has no damage to operator.



Features:

The shredder rotation speed of main rotor ranges from 60~100rpm unlike the granulators with spin in high speed. They could working gentle even when process really rough pieces.

Long life knives used. The unique designed square knives are bolted on the strong rotor and the jagged teeth knife installed in front side of the cut chamber  stationary knife which are the key parts for cut off all the feeded materials.Square knives has four edges could be change before replacement.

High quality gearbox used on driving system.

High thickness steel used on sturcture and frame for enhancing the stability of equipment.

The PLC controlled hydraulic pusher forces material to the rotor automatically.

The screen filter sizes ranges for varies material particle size control.

Easy for operation maintainence



Models&specification:

Model

Power

(KW)

Hydraulic power

(KW)

Rotor diameter

(mm)

Capacity approx.

(kg/h)

LPS800

37×2

4

800

1000-1500

LPS1000

45×2

5.5

1000

1500-2500

LPS1500

55×2

7.5

1450

2000-3000
