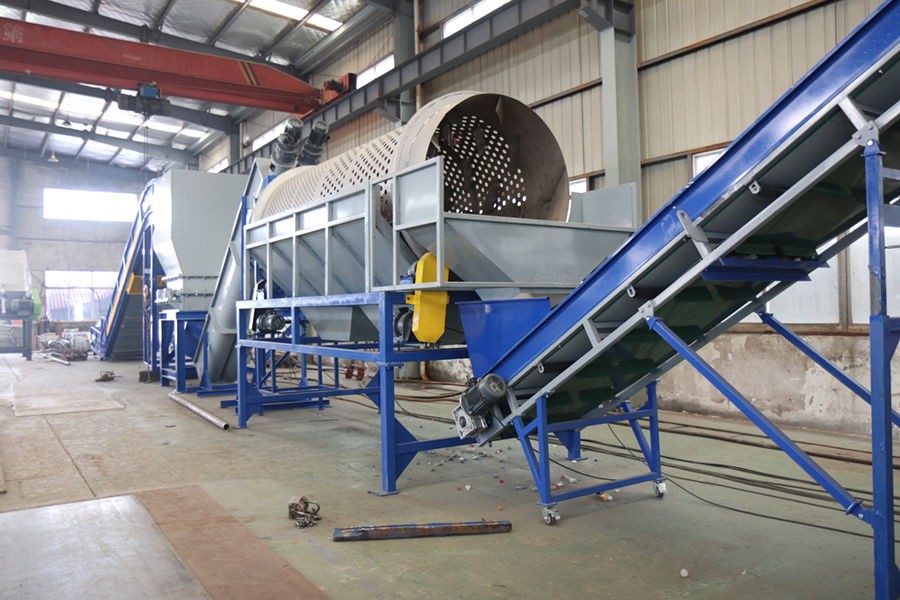

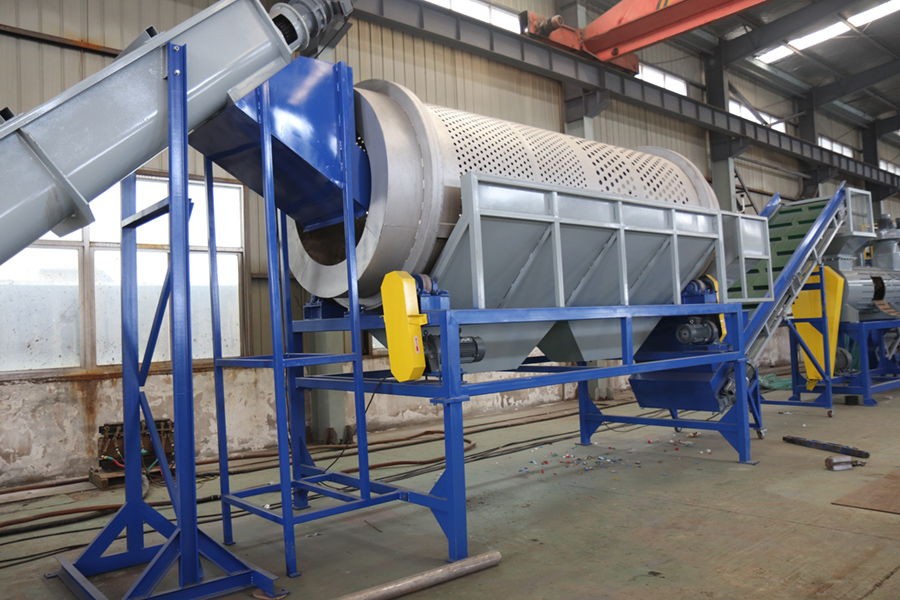

Trommel machine:

Trommel machine is a typical separation machine we choose to use in a plastic recycling plant.It uses the slow rotation for separate out the small dirties or contaminations like stones,caps,glasses ect from the main recycling material steam. It could widely used in varies types of wastes separation and recycling plants.

Working principle:

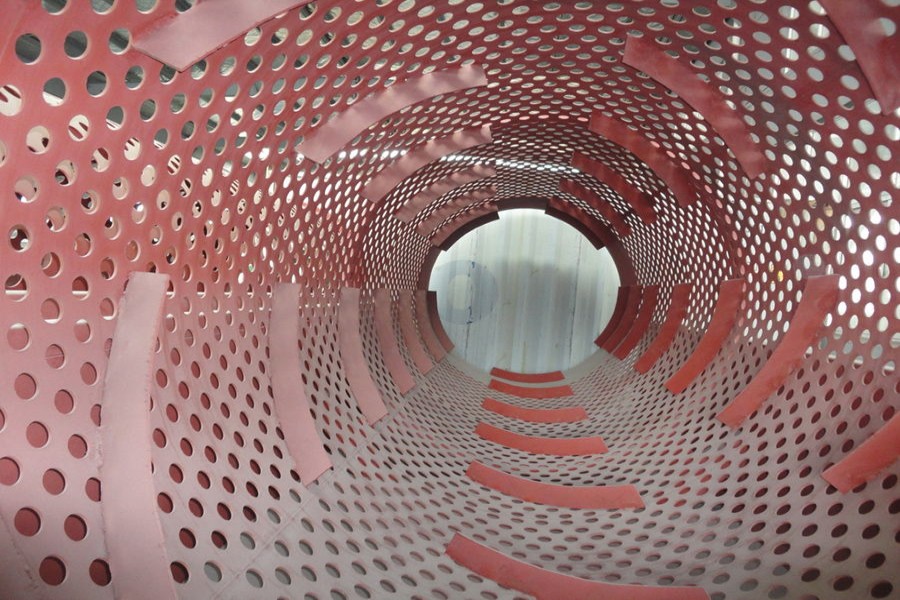

1. Big trommel runs in low speed. Internal side are welded with guide plate with angles. Mesh hole size will be designed up to the contamination size you want to separate.
When feeding wastes material continuously,The mesh screen will turning slowly with some fixed speed,The guide plate will moving the materials forward. The dirties we want to separate will be falling through the mesh hole and leaves the material moves forward tor next recycling processing. Meanwhile, the falling dirties will be collected with buttom screw.

For PET bottles recycling, We have standard models supply.

Trommel tunnel length: 4000mm, 6000mm,8000mm

Screen mesh diameter:1200mm,1500mm,1900mm

We could produce the trommel as per your special requests,too.
