Short Description:

DS series Double shaft shredders is a kind of heavy duty shear type size reduction machine. They adopt to PLC automatic control for start,stop, reversion and overload reversion. It’s specially designed for bulky and tough materials such as varies size containers,bottles, barrels,waste packaged wastes,plastic trays,TV /refrigerator shells, tyres, so as some woods, metals and medical wastes.


Product Detail

Product Images

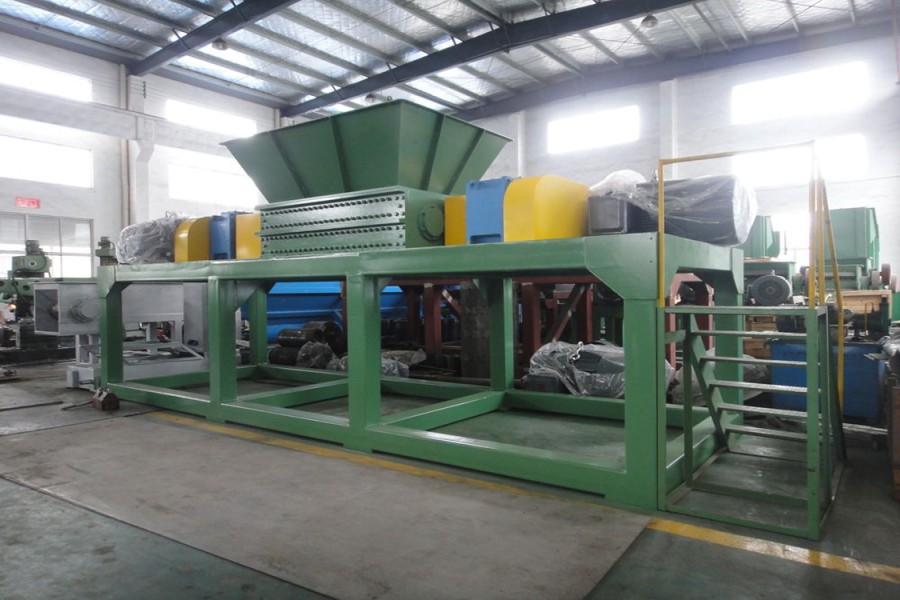

1. Double shaft shredder

DS series Double shaft shredders is a kind of heavy duty shear type size reduction machine. They adopt to PLC automatic control for start,stop, reversion and overload reversion. It’s specially designed for bulky and tough materials such as varies size containers,bottles, barrels,waste packaged wastes,plastic trays,TV /refrigerator shells, tyres, so as some woods, metals and medical wastes.



Features:

Low speed running,Low noise, High torque cutting with High output

High quality gearbox equipped for driving system

High thickness steel used on sturcture and frame for enhancing the stability of equipment.

Shear blades material adopt to SKD11(D2).Long life working of blades.

Easy for operation maintainence



Double shaft shredder models&specification:

Model

Power

(KW)

Blades thickness

(mm)

Rotary diameter

(mm)

Capacity approx.

(kg/h)

DS600

15×2

25mm~100mm

ф300mm

500-800

DS800

22×2

25mm~100mm

Ф460mm

1000-1200

DS1000

30×2

25mm~100mm

Ф460mm

1200-2000

DS1200

45×2

25mm~100mm

Ф520mm

1800-2500

DS1400

55×2

25mm~100mm

Ф520mm

2000-3000

DS2000

75×2

25mm~100mm

Ф520mm

2500-4000
